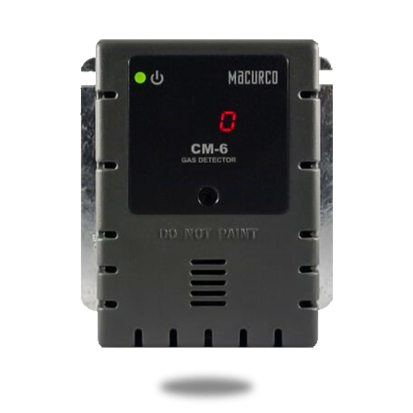

Model : Macurco CM-6


เครื่องวัดแก๊สแบบติดตั้งรุ่น Macurco CM-6
สามารถวัดได้หลากหลายชนิดแก๊สให้เลือก
(O2,LEL,CO,CO2,NO2,H2S,NH3) ในราคาประหยัด


คุณสมบัติ :
• Power: 3 W (max) from 12 to 24 VAC or 12 to 48 VDC
• Current @ 24 VDC: 75 mA in alarm, 50 mA fan relay on and 23 mA stand by
• Shipping Weight: 1 pound (0.45 kg)
• Size: 4 1/2 x 4 x 2 1/8 in. (11.4 X 10.2 X 5.4 cm)
• Color: Dark gray
• Connections: plugs/terminals
• Mounting box: (not included) 4x4 electric
• Fan relay: 5 A, 240 VAC, pilot duty, SPDT, latching or non-latching
• Fan relay actuation: selectable at OFF, 1, 2, 3, 4, 5, 6, 7, 8, 9,
10 (default), 11, 12, 13, 14, 15, 16, 17, 18, 19, 20% LEL
• Fan Delay Settings of 0, 1, 3 (default), 5 and 10 minutes
• Fan Minimum Runtime settings are OFF (default), 3, 5, 10 or 15 minutes
• Alarm relay: 0.5A 120 V, 60 VA
• Alarm relay actuation: selectable N.O. default or N.C. GD-6 Rear View
• Alarm relay settings: OFF, 5, 10, 15, 20 (default), 25% LEL
• Current Loop, 4-20 mA for 0-50% LEL
• Operating Environ: 0°F to 125° F (-18°C or above 52°C).10 to 90% RH
